Single Axis Solar Tracker System -14" Inch 12V 1500N Linear Actuator
+ControllerUSD $109.24
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
Here for sale is Complete Single Axis Solar Tracker Kits, items Include a 350mm/ 14" Stroke Linear Actuator &Mounting Brackets and the Electronic LCD Controller you need for a single axis solar tracker system.
Build your own frame and you will get a professional grade single axis solar tracker!
Package Included:
★ 1x Solar Tracking Controller +Light Sensor+IR Remote.
★ 2x Silver Mounting Brackets W/ 2PCS bolt and 2PCS cotter pin for the linear actuator.
Wiring:
Note 1: The battery in the photo is only for reference and is not included in the package.Note 2: Make sure the input voltage for the whole system is DC 12V and the input current is no less than 5A.
Note 3: The solar tracker controller box is not waterproof, remember to protect it when assembling.
About the Linear Actuator:
For the Linear Actuator, we have 200mm/250mm/300mm/350mm/400mm/450mm Stroke for Option,
Here for sale is 350mm stroke, if you need other stroke, Pls Click Here
Product Name
Linear Actuator
Condition
100% New
Input Voltage
DC 12V
Stroke Length
350mm/14"
Retracted Length
470mm/18.50"
Extended Length
820mm/32.28"
Max Push Load
1500N/150KG/330lbs
Max Pull Load
1200N/120KG/264lbs
Speed
5.7mm/s (0.22"/s)
Power Cord Length
1.5Meters/59"
Duty Cycle
25%
Operating Frequency
20%
Material
Aluminum Alloy
Color
Silver Grey
Operation Temperature
-26 ° C ~ +65 ° C
Protection Class
IP54
No-load Current
< 0.5A
Max load Current
3A
Certification
CE
Warranty
Standard 1 year
Built-in Limit Switch
Yes
Dimensional Drawing:
About the Solar Tracker Controller:
This is WST03-3 Single Axis Solar Tracker Controller, the main function is to control the single axis (oblique single axis)system to track the sunlight. Items include the LCD controller box, light sensor&3 meters wire and IR (infrared) remote.
One of the advantage is that the light sensor is inside the waterproof shell which can extend the light sensor's lifespan. Another advantage is there is a sun-visor which can enlarge the detection angle range and thus increase the tracking accuracy.
Specification:
Product Name
WST03-3 Solar Tracker Controller
Brand
SZMWKJ
Condition
100% New
Controller Box Dimension
145x90x40mm (5.71"x3.54"x1.57")
Input Voltage
DC 12V/24V (DC 9V~35V)
Max Load Current
15A
Operating Temperature
-20℃ to +60℃
Tracking Accuracy
≤1°
Features:
1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed);
2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging;
3.With LCD display which can show multiple working modes and parameters;
4.Many of the parameters can be set (Tracking accuracy, threshold value of the light sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...);
5.With strong wind protection mode (Wind speed sensor is required);
6.Can set the platform stay at any position at night (or cloudy day);
7. Can connect limit switch;
8.Can be operated by IR remote control or the buttons on the controller box;
9.Reverse battery protection, over-current protection; standby current ≤15mA.
For more details of the Solar Tracker Controller, Pls Click HereProduct Highlights of the Solar Tracker System:
* Standard 1 year warranty.* Free-maintenance.* Easy-installation.* Single axis tracker provides up to 35% more power production.* Engineered to hold up to 1000 Watts of solar panels.* Waterproof with IP54.* Small self–consumption.Caution:
* The Input Voltage for the whole system should be DC 12V.* Never approach a solar tracker while the Solar Tracker electronics are “on”.
* The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.

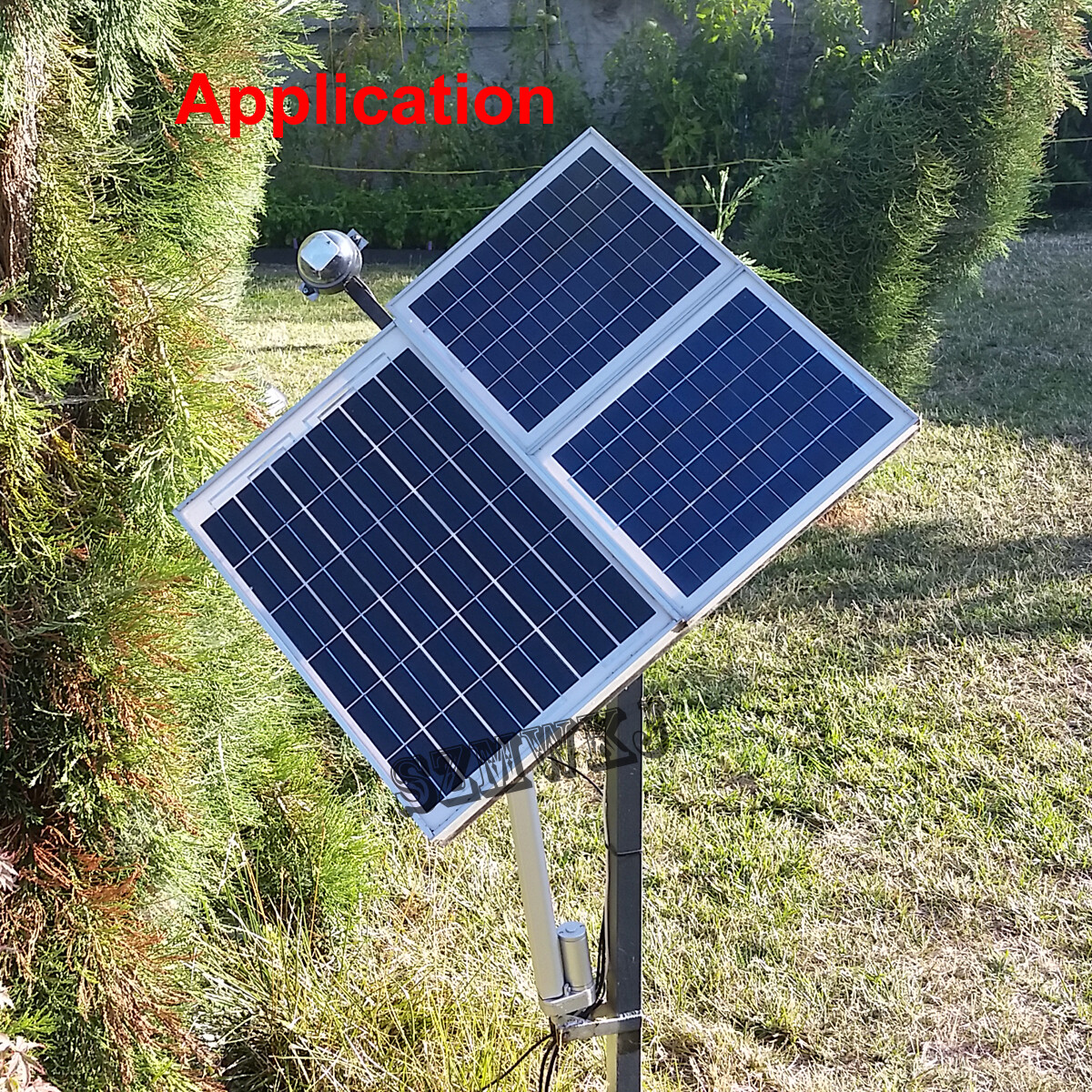

* Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker.Application:
Solar tracking system: Solar photovoltaic System, solar thermal system,etc.
